EOS SteamRock II series

Steam generator

High-performance steam generator for steam rooms.

Robust, durable construction with quality heating elements. Very fast steam production, high efficiency. The power output may be quickly adjusted on site - from 18 kW to 3 kW in 3 kW steps. Flexible installation thanks to variable steam outlet.
Water tank made entirely of stainless steel, separately replaceable heating elements. Fully automatic operation with overheating protection. Integrated automatic descaling system (cleaning and descaling). Delivery includes a 5 l container with level probe for descaler liquid.

Suitable control unit - e.g. LSG Steam for EOS EmoTouch 3, EOS Econ S2.EOS SteamRock II Premium: Luxury class steam generator with high-performance quality heating elements for steam rooms.Built-in descaling and automatic cleaning system. With control unit – including ​EOS EmoTouch 3 control panel with colour touchscreen display. Very large scope of functions and features, e. g. coloured light, sound, remote start, etc.Built-in essence dosing system for two fragrances. The power output may be quickly adjusted on site. Flexible installation thanks to variable, extra-large 1 1/4 “steam outlet for efficient operation.Volt-free outputs for bench and floor heating. Outputs for two fans and light (dimmable).

Your advantages
  • High performance steam generator for steam rooms.
  • Ideal for private and commercial use.
  • Very fast steam production.
  • Durable construction for heavy-duty use - reinforced stainless steel water tank with separately replaceable long-life heating elements.
  • Quick adjustment of power output in 3 kW steps directly on site.
  • Dry-run protection with automatic switch-off by overheating.
  • Service-friendly construction with quick access to all components.
  • Integrated automatic descaling system, automatic draining.

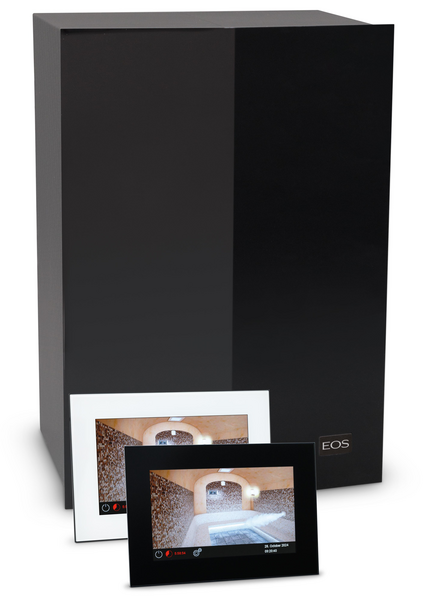

EOS SteamRock II Premium

  • Durable construction for heavy-duty use - reinforced stainless steel water tank with separately replaceable long-life heating elements.
  • Power output can be adjusted on site.
  • With EOS EmoTouch 3 Control - the 7” colour touch screen display can be installed up to 50 m away from the steam generator.
  • Built-in essence dosing system for two fragrances.
  • Volt-free outputs for bench and floor heating.
  • Outputs for two fans and light (dimmable).
Technical specifications

Dimensions H/W/D, mm

670 x 460 x 350

Power supply

400 V 3N ~ 50/60 Hz

Net weight (3 - 9 / 12 - 18 kW)

28 kg / 30 kg (Basic)
29 kg / 31 kg (Premium)

Water supply

3/4“ AG

Water pressure (supply)

2 - 8 bar (Basic)
1 - 6 bar (Premium)

Steam output

1 1/4“ AG

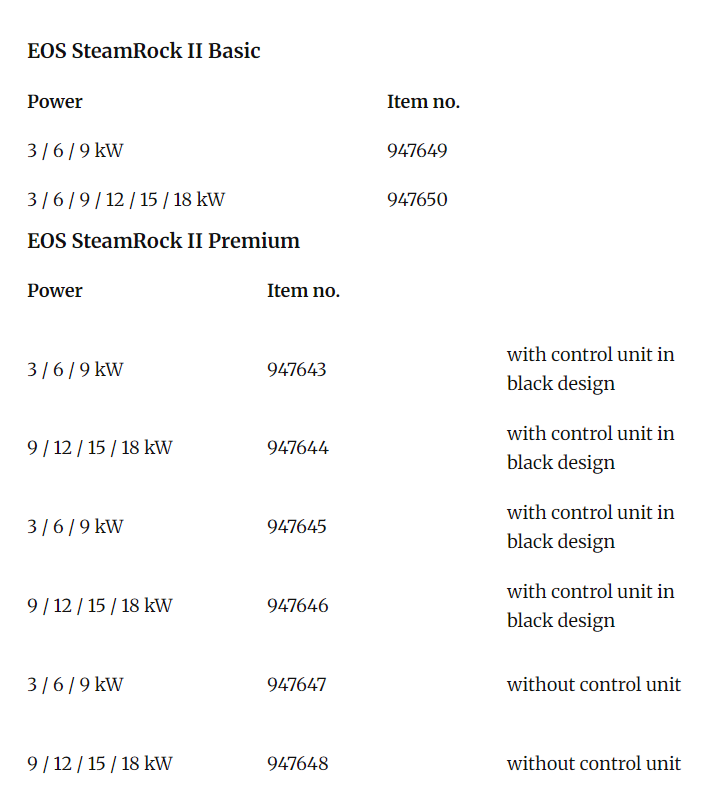

Model overview

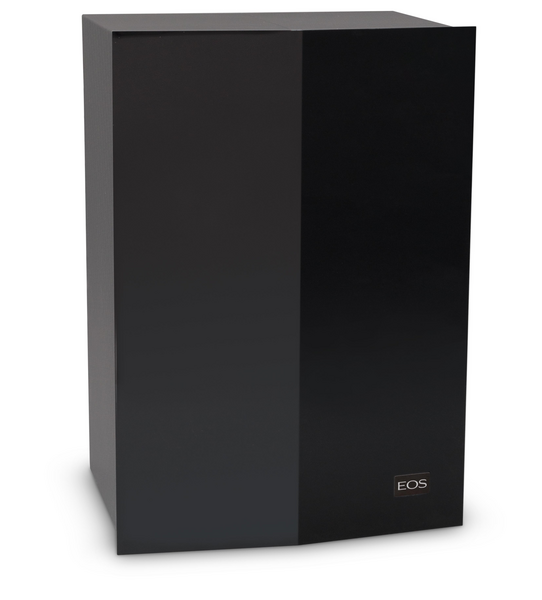

EOS SteamRock II Basic

Power

Item no.

3 / 6 / 9 kW

947649

3 / 6 / 9 / 12 / 15 / 18 kW

947650

EOS SteamRock II Premium

Power

Item no.

3 / 6 / 9 kW

947643

with control unit in black design

9 / 12 / 15 / 18 kW

947644

with control unit in black design

3 / 6 / 9 kW

947645

with control unit in black design

9 / 12 / 15 / 18 kW

947646

with control unit in black design

3 / 6 / 9 kW

947647

without control unit

9 / 12 / 15 / 18 kW

947648

without control unit
